FJB102TM
Manufacturer:
On Semiconductor
Mfr.Part #:
FJB102TM
Datasheet:
Description:

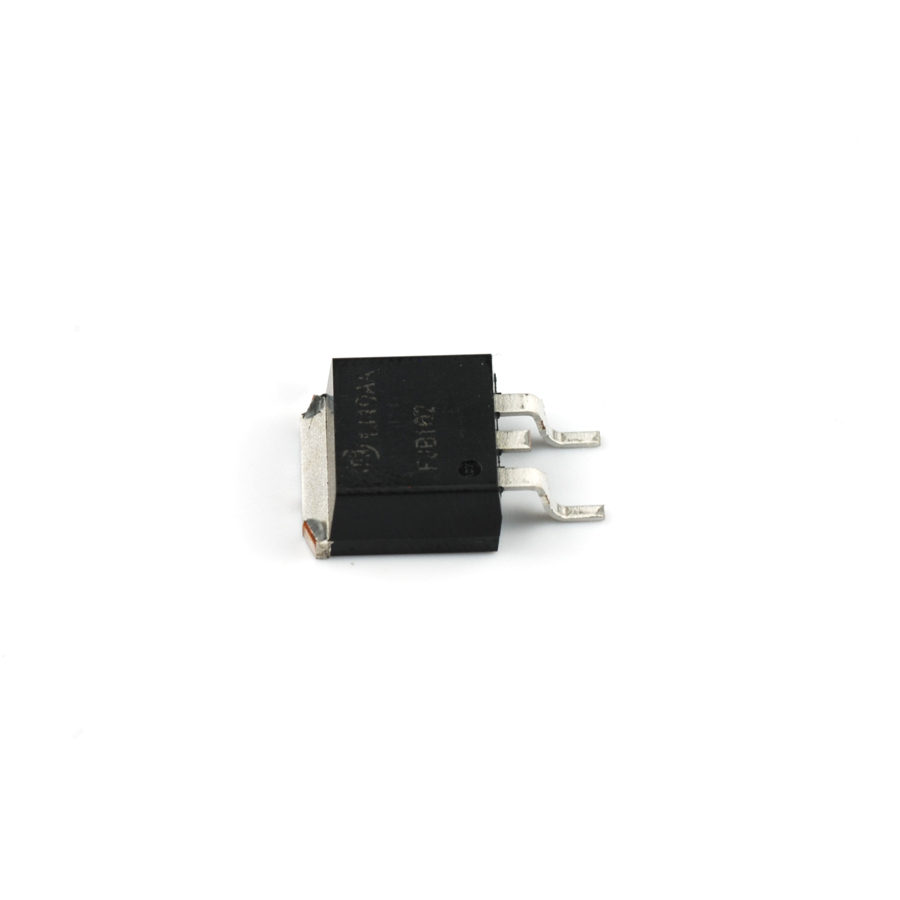

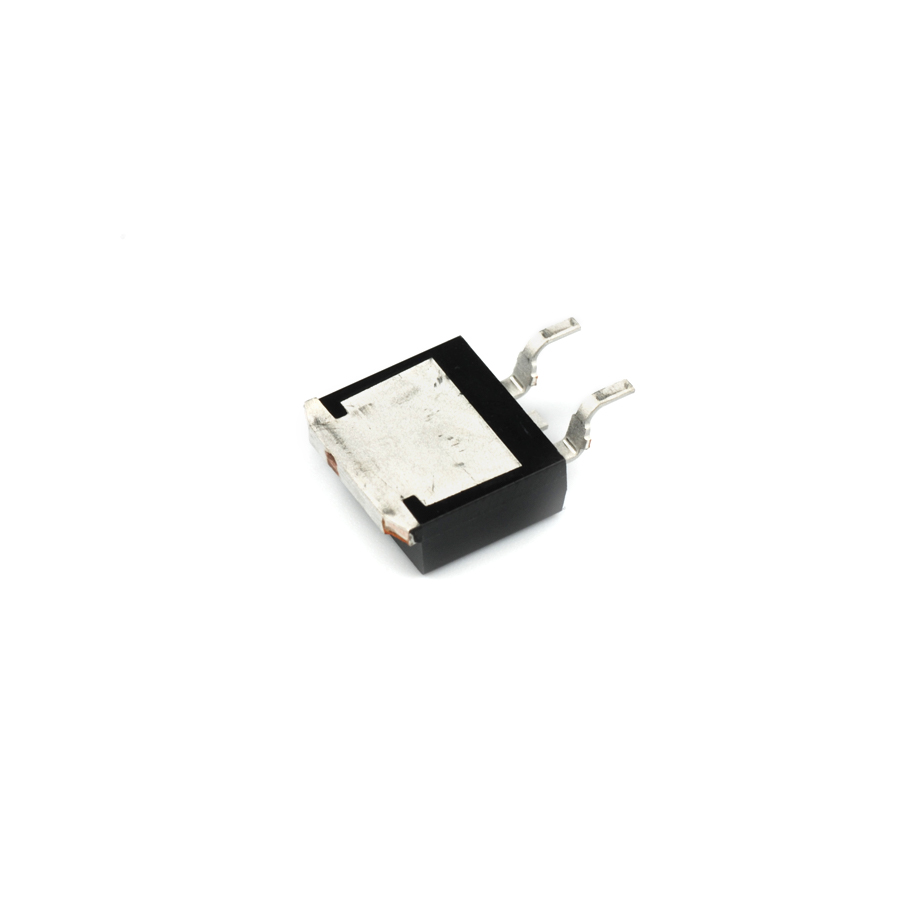

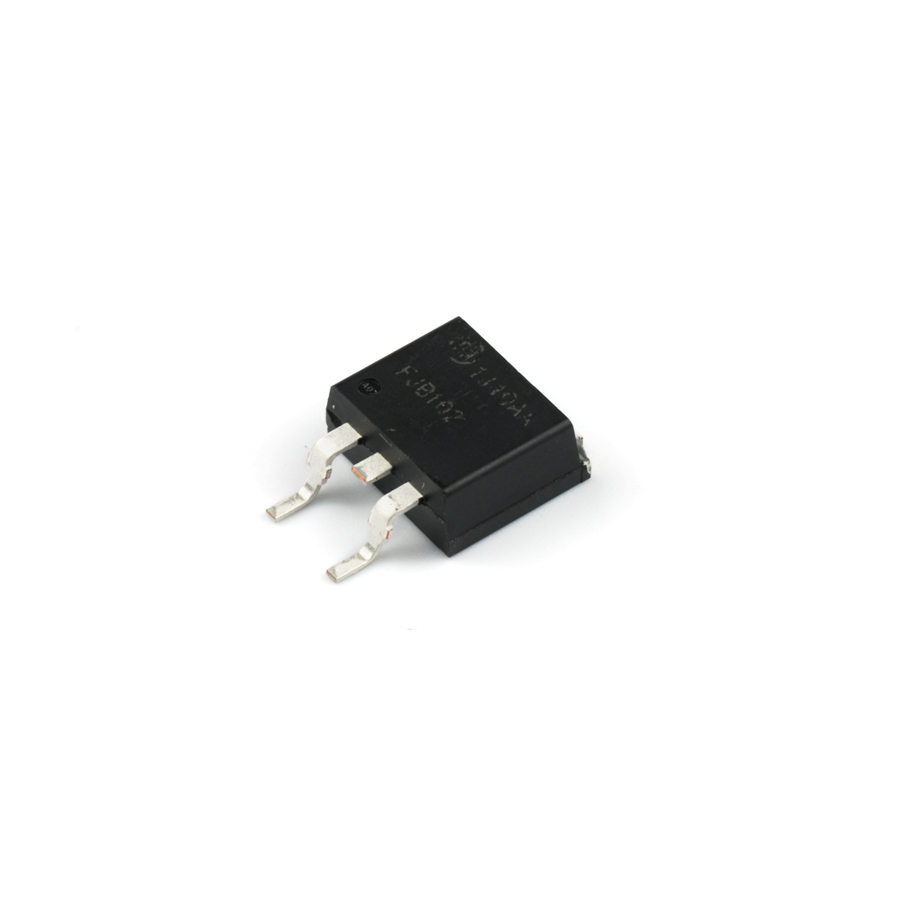

BJTs TO-263 SMD/SMT NPN 80 W Collector Base Voltage (VCBO):100 V Collector Emitter Voltage (VCEO):100 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Weight | 1.31247 g |
| Number of Elements | 1 |
| Current Rating | 8 A |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 80 W |
| Power Dissipation | 80 W |
| Max Collector Current | 8 A |
| Collector Emitter Breakdown Voltage | 100 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 100 V |
| Max Breakdown Voltage | 100 V |
| Collector Base Voltage (VCBO) | 100 V |
| Collector Emitter Saturation Voltage | 2 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 200 |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Max Cutoff Collector Current | 8 A |
| Transistor Type | NPN |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.68102
Ext.Price$0.68102
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68102 | $0.68102 |
| 10 | $0.66432 | $6.64320 |
| 25 | $0.65896 | $16.47400 |
| 50 | $0.65364 | $32.68200 |
| 100 | $0.64835 | $64.83500 |
